Product Info
| Part Number |
JTP1230WB
|
| Type |
Snap-In Type |
Product Detail
| Operating force |
260 ± 50 gf |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Stem Color |
Red |
| Operating life |
100000 |
| Water Proof |
|
| Travel |
0.25 mm +0.2mm / - 0.1mm |
| Operating temperature range |
-20 ~ 70 °C |
| Rating |
DC 12V 50mA |
| Dimensions |
6.0mm * 6.0mm |
| Length |
9.5mm |
| Circuit |
1C - 1P |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
250 |
| Contact resistance |
50 |
| Environmental performance |
Cold
|
-30 ± 2 °C 96Hr |
|
Dry
|
85 ± 2 °C 96Hr |
|
Damp
|
60 ± 2 °C 96Hr |
Package Info
| Number of Packages |
750 |
| Packing Type |
Poly bag |
| Number of Packages (1c/t) |
30000 |
| Package Measurements (mm) |
480 * 290 * 370 |

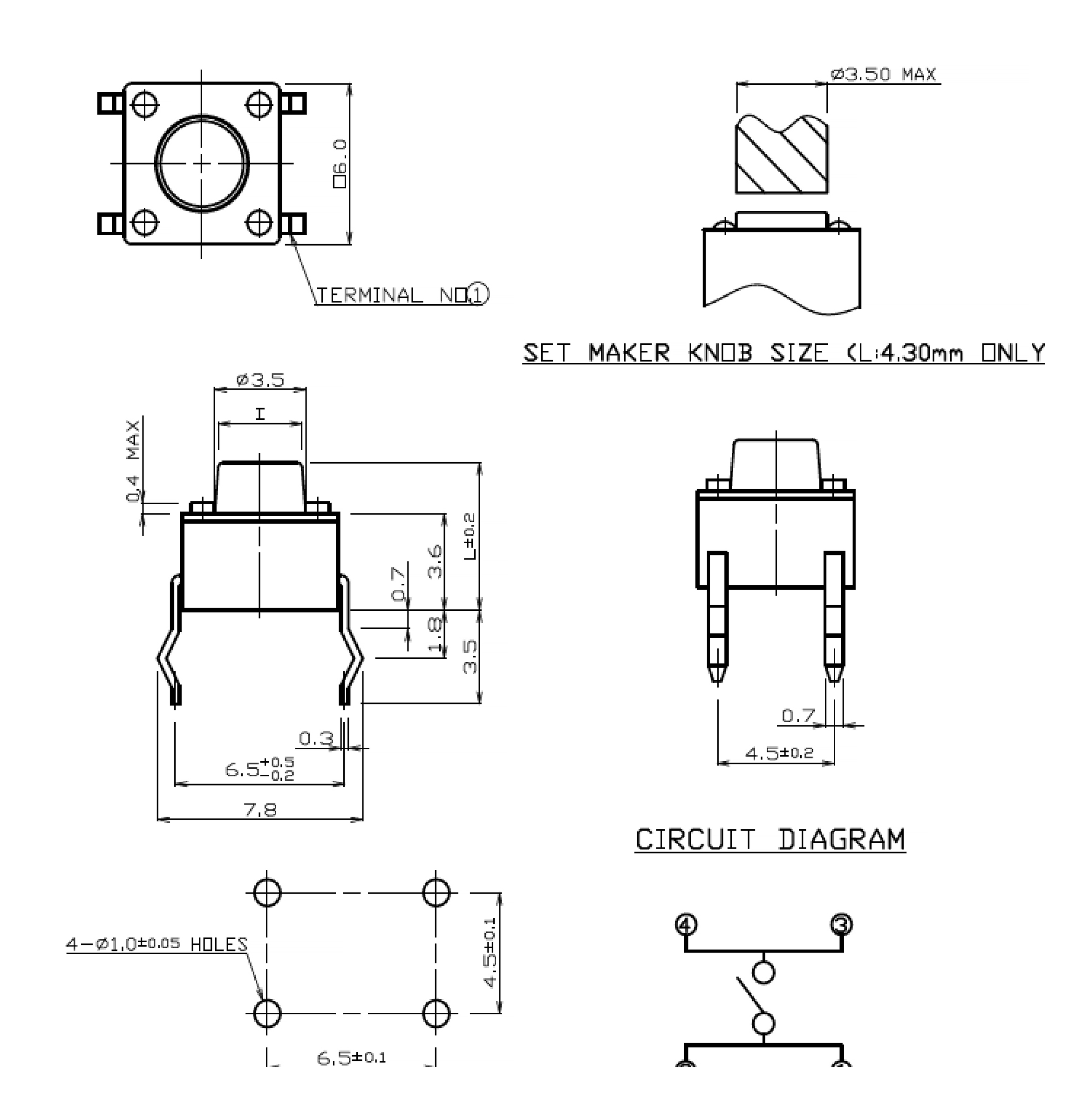

Product floor plan
