Refine Search > SLIDE > JSS1218R
Product Info
| Part Number |
JSS1218R
|
| Type |
Vertical Type |
Product Detail
| Operating force |
250 ± 100 gf |
| Operating direction |
Top push, Side push |
Top slide |
|
Horizontal, Vertical
|
Vertical |
| Slider Color |
RED |
| Operating life |
10000 |
| Water Proof |
|
| Travel |
Full |
2.5mm |
| Operating temperature range |
-10 ~ 60 °C |
| Rating |
DC 30V 0.2A |
| Dimensions |
11.6mm * 4.0mm |
| Length |
4.7mm |
| Timing |
Non shorting |
| Circuit |
1C - 2P |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
0 |
| Contact resistance |
0 |
| Environmental performance |
Cold
|
|
|
Dry
|
|
|
Damp
|
|
Package Info
| Number of Packages |
|
| Packing Type |
|
| Number of Packages (1c/t) |
|
| Package Measurements (mm) |
480 * 290 * 370 |

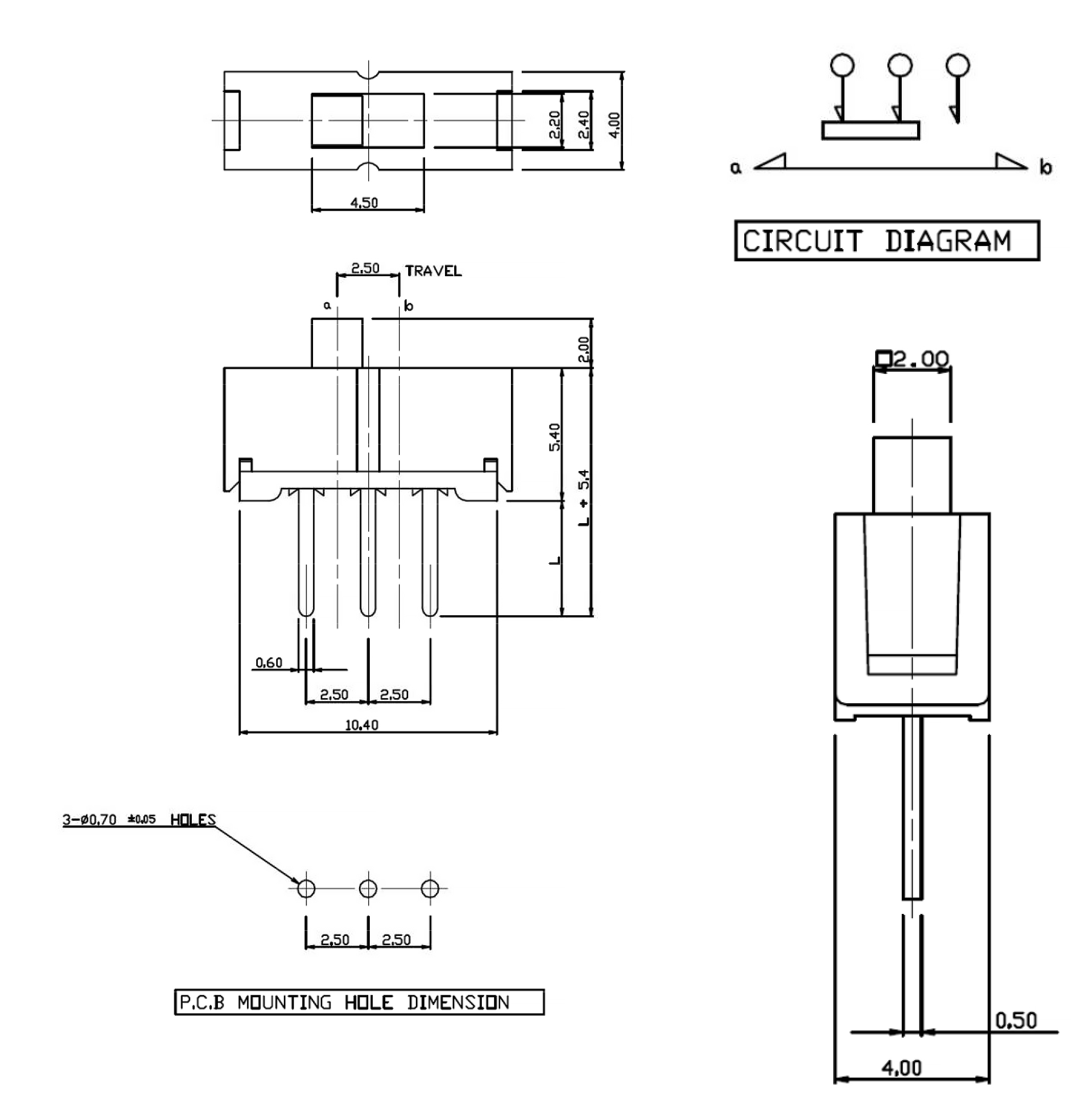

Product floor plan
