Refine Search > PUSH > JPS2171N
Product Info
| Part Number |
JPS2171N
|
| Type |
Vertical Type |
Product Detail
| Operating force |
140 ± 50 gf |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Push Color |
Gray |
| Operating life |
10000 |
| Water Proof |
|
| Travel |
Full |
1.8mm |
|
Lock
|
- |
| Operating temperature range |
-10 ~ 60 °C |
| Rating |
DC 3V 1.25A(On) 0.3A(Off) |
| Dimensions |
7.0mm * 7.0mm |
| Length |
16.2mm |
| Timing |
Non Shorting |
| Circuit |
2C-1P |
| Operate mode |
Non-Lock |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
1000 |
| Contact resistance |
50 |
| Environmental performance |
Cold
|
-30 ± 2 °C 96Hr |
|
Dry
|
80 ± 2 °C 96Hr |
|
Damp
|
60 ± 2 °C 96Hr |
Package Info
| Number of Packages |
600 |
| Packing Type |
Tray |
| Number of Packages (1c/t) |
9600 |
| Package Measurements (mm) |
470 * 360 * 290 |

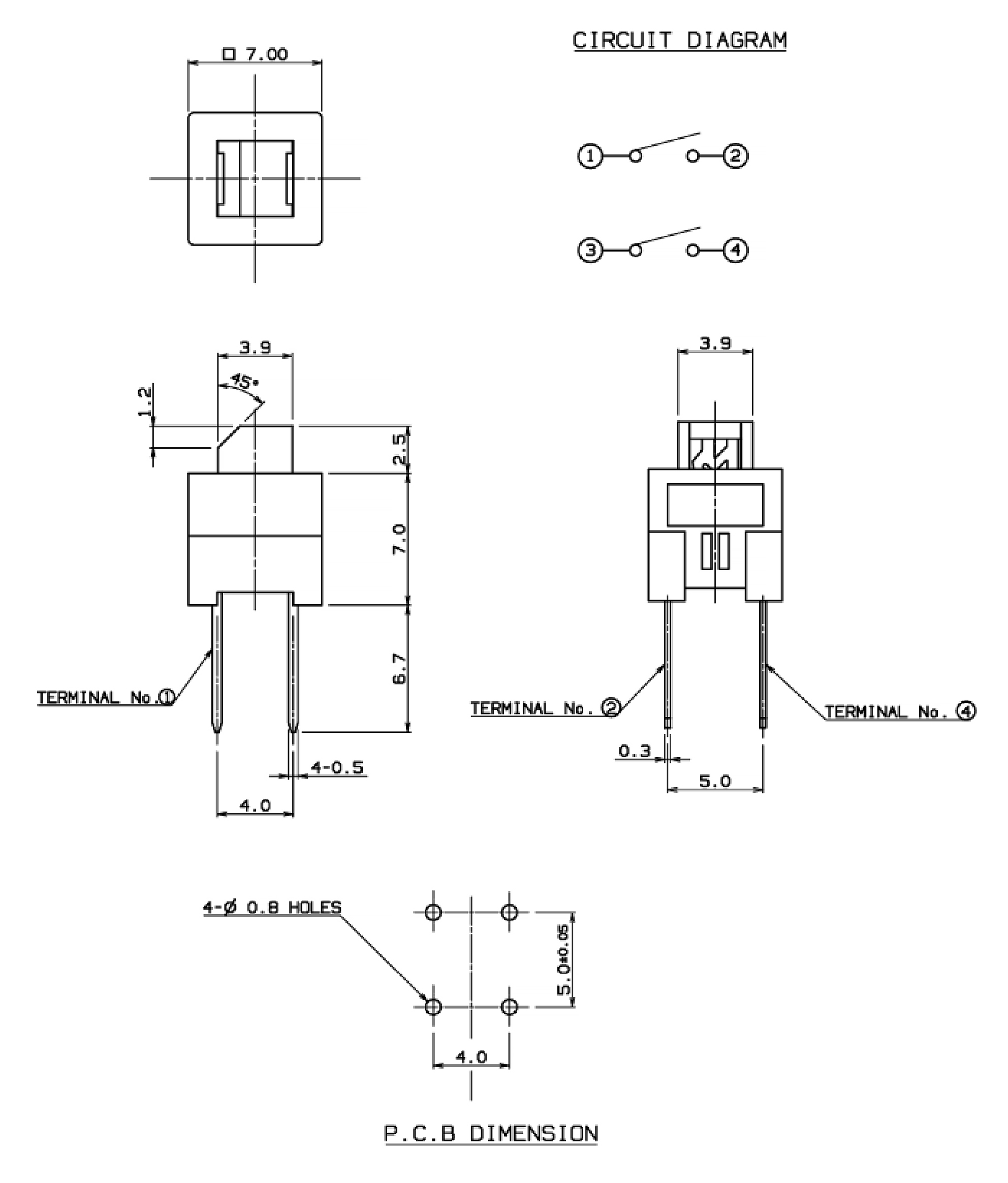

Product floor plan
