Refine Search > PUSH > JPS1258DS
Product Info
| Part Number |
JPS1258DS
|
| Type |
Horizontal Type |
Product Detail
| Operating force |
230 ± 100 gf |
| Operating direction |
Top push, Side push |
|
|
Horizontal, Vertical
|
Holizontal |
| Push Color |
Dark Gray |
| Operating life |
10000 |
| Water Proof |
|
| Travel |
Full |
3.5mm |
|
Lock
|
2.5mm |
| Operating temperature range |
-10 ~ 60 °C |
| Rating |
DC 30V 0.3A |
| Dimensions |
22.0mm * 5.0mm |
| Length |
8.3mm |
| Timing |
Non Shorting |
| Circuit |
1C - 2P |
| Operate mode |
Self-Lock |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
1000 |
| Contact resistance |
50 |
| Environmental performance |
Cold
|
-30 ± 2 °C 96Hr |
|
Dry
|
80 ± 2 °C 96Hr |
|
Damp
|
60 ± 2 °C 96Hr |
Package Info
| Number of Packages |
400 |
| Packing Type |
Poly Bag |
| Number of Packages (1c/t) |
6400 |
| Package Measurements (mm) |
470 * 360 * 290 |
Product Image

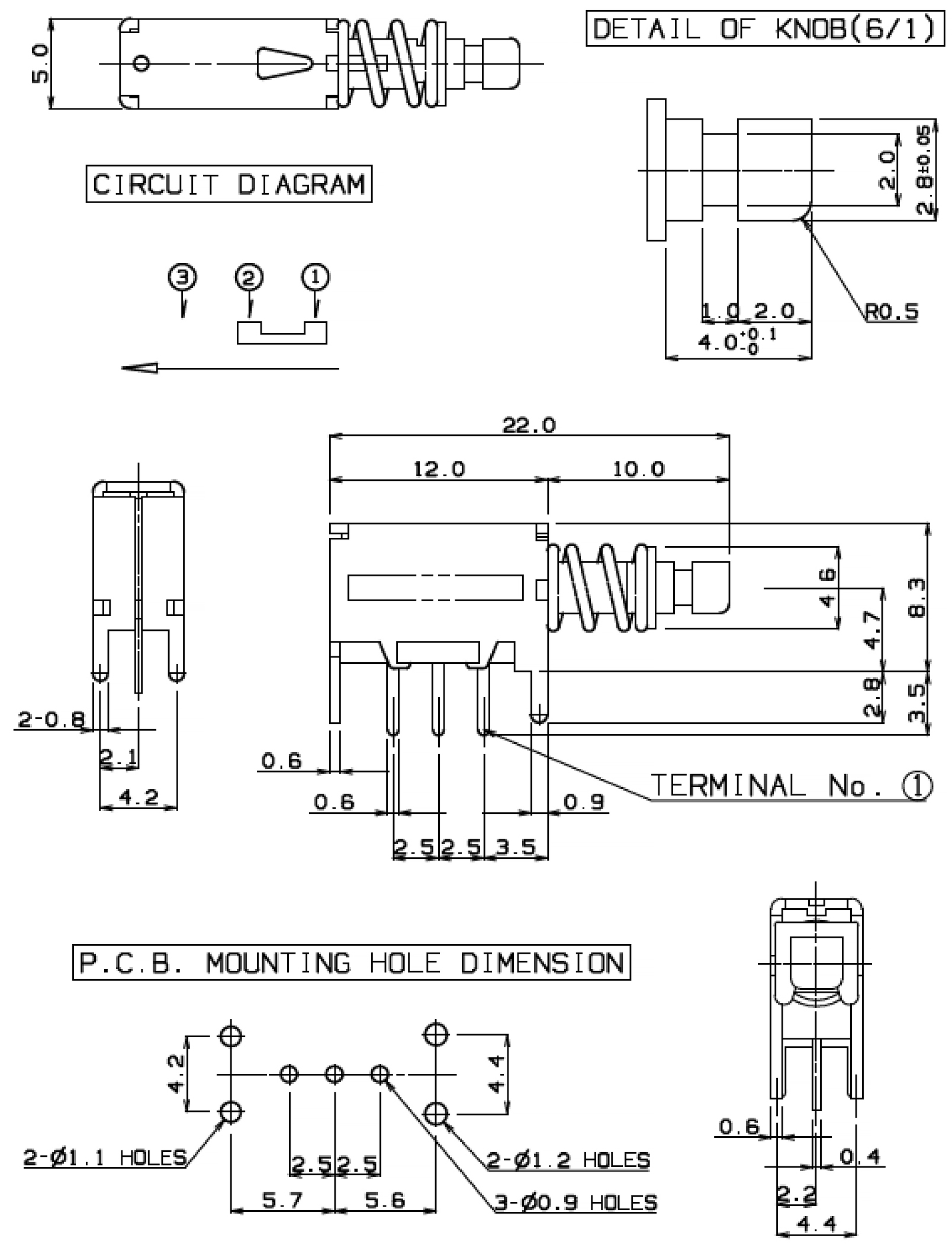

Product floor plan
