Refine Search > PUSH > JP1212P
Product Info
| Part Number |
JP1212P
|
| Type |
Vertical Type |
Product Detail
| Operating force |
120 ± 50 gf |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Push Color |
White |
| Operating life |
50000 |
| Water Proof |
|
| Travel |
Full |
10.0mm |
|
Lock
|
- |
| Operating temperature range |
-10 ~ 60 °C |
| Rating |
DC 12V 0.3A |
| Dimensions |
18.8mm * 8.4mm |
| Length |
29.3mm |
| Timing |
Non shorting |
| Circuit |
1C - 2P |
| Operate mode |
Non-Lock |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
500 |
| Contact resistance |
50 |
| Environmental performance |
Cold
|
-20 ± 2 °C 96Hr |
|
Dry
|
85 ± 2 °C 96Hr |
|
Damp
|
40 ± 2 °C 96Hr |
Package Info
| Number of Packages |
500 |
| Packing Type |
Poly Bag |
| Number of Packages (1c/t) |
6000 |
| Package Measurements (mm) |
470 * 360 * 290 |
Product Image

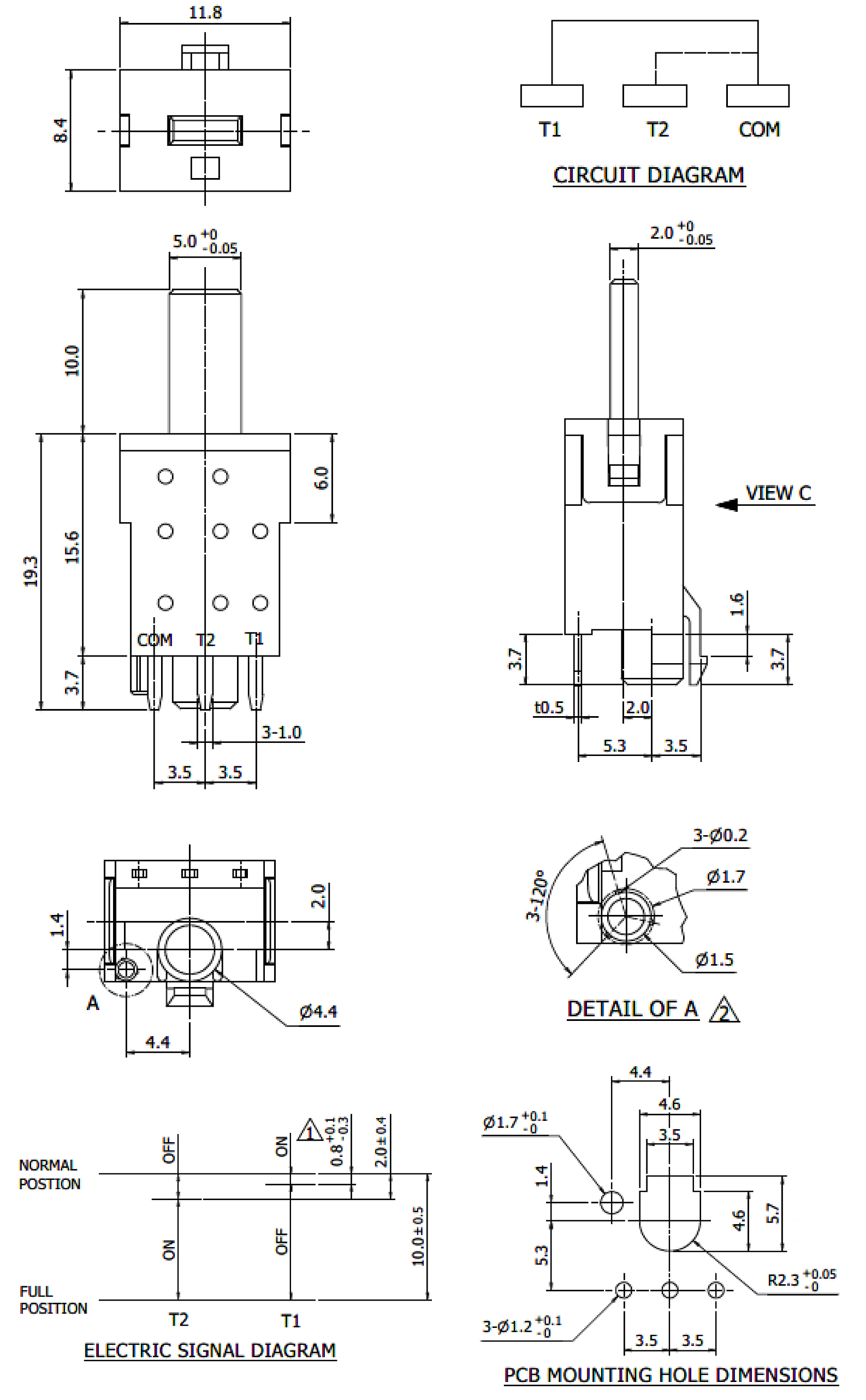

Product floor plan
