Refine Search > POWER > JRD1201-01W02MB16
Product Info
| Part Number |
JRD1201-01W02MB16
|
| Type |
Rocker Type |
Product Detail
| Operating force |
400±200gf |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Knob Color |
Black |
| Operating life |
25000 |
| Water Proof |
|
| Travel |
Full |
|
|
Lock
|
|
| Operating temperature range |
-10 ~ 60 °C |
| Rating |
AC 125V 12A, TV-5 AV 250V 5A |
| Dimensions |
21mm * 9.5mm |
| Length |
21.7mm |
| Circuit |
1C-1P |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
1500 |
| Contact resistance |
50 |
| Environmental performance |
Cold
|
-30 ± 2 °C 96Hr |
|
Dry
|
85 ± 2 °C 96Hr |
|
Damp
|
60 ± 2 °C 90% 96Hr |
Package Info
| Number of Packages |
20 |
| Packing Type |
Poly Bag |
| Number of Packages (1c/t) |
480 |
| Package Measurements (mm) |
470 * 360 * 290 |

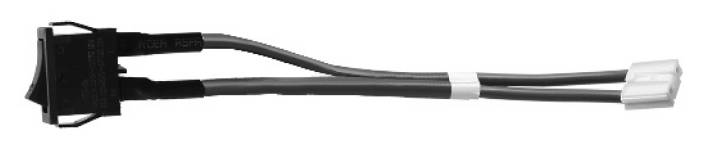

Product Image

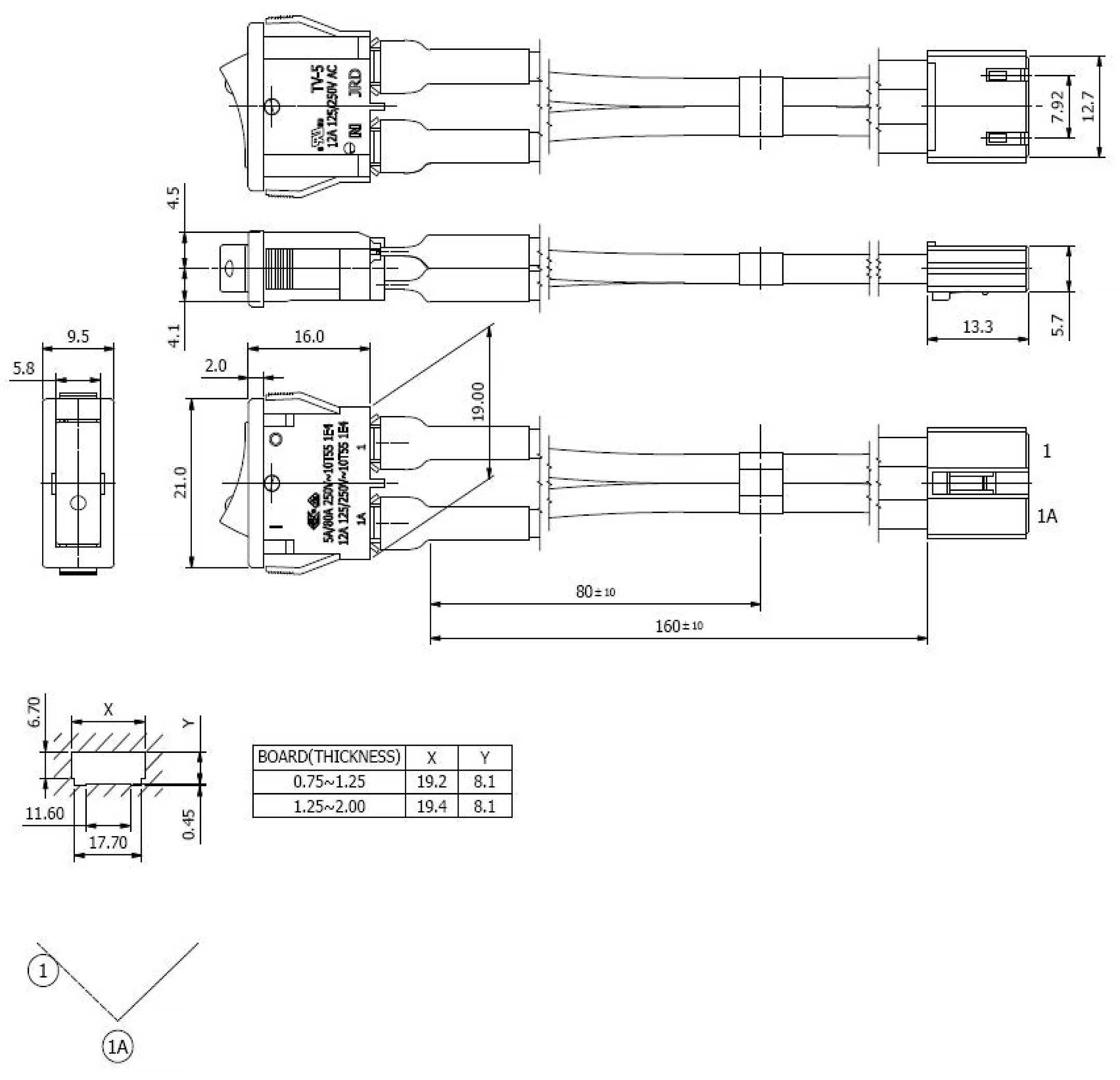

Product floor plan
