Refine Search > POWER > JPP2295MPACS72
Product Info
| Part Number |
JPP2295MPACS72
|
| Type |
Push Type |
Product Detail
| Operating force |
550±150gf |
| Operating direction |
Top push, Side push |
|
|
Horizontal, Vertical
|
Holizontal |
| Knob Color |
Black |
| Operating life |
6000 |
| Water Proof |
|
| Travel |
Full |
5.5±0.5mm |
|
Lock
|
4.0±0.5mm |
| Operating temperature range |
-10 ~ 60 °C |
| Rating |
AC 125V 7A AV 250V 4A |
| Dimensions |
48.6mm * 15mm |
| Length |
11.3mm |
| Circuit |
2C-2P |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
1000 |
| Contact resistance |
100 |
| Environmental performance |
Cold
|
-30 ± 2 °C 96Hr |
|
Dry
|
85 ± 2 °C 96Hr |
|
Damp
|
60 ± 2 °C 90% 96Hr |
Package Info
| Number of Packages |
40 |
| Packing Type |
Tray |
| Number of Packages (1c/t) |
640 |
| Package Measurements (mm) |
470 * 360 * 290 |

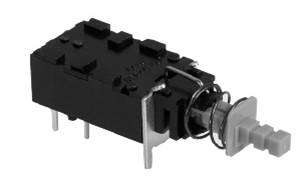

Product Image

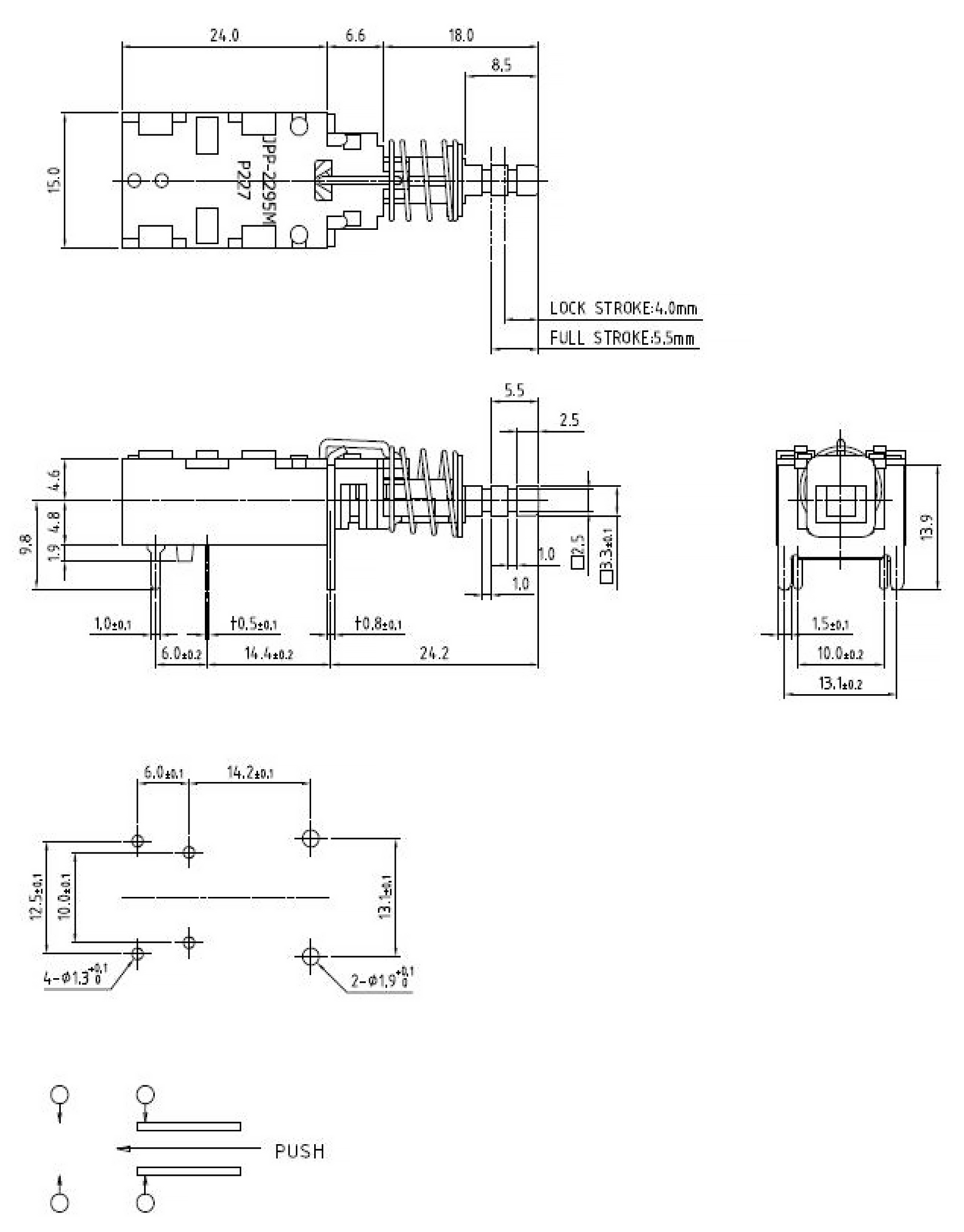

Product floor plan
