Refine Search > ENCORDER > JES1408GA
Product Info
| Part Number |
JES1408GA
|
| Type |
Absolute Type |
Product Detail
| Operating force |
350 ± 100 gf |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Shaft Color |
Black |
| Operating life |
30000 |
| Water Proof |
|
| Travel |
Full |
10.0mm |
|
On
|
|
| Operating type |
Incremental, Absolute |
|
| Operating temperature range |
-10 ~ 80 °C |
| Rating |
DC 28V 10mA |
| Dimensions |
17mm * 14.4mm |
| Length |
30mm |
| Circuit |
3 Bit |
| Electrical performance |
Insulation resistance
|
10 |
| Voltage proof |
100 |
| Contact resistance |
500 |
| Environmental performance |
Cold
|
-25 ± 2 °C 96Hr |
|
Dry
|
70 ± 2 °C 96Hr |
|
Damp
|
40 ± 2 °C 90% 96Hr |
Package Info
| Number of Packages |
84 |
| Packing Type |
Tray |
| Number of Packages (1c/t) |
1680 |
| Package Measurements (mm) |
470 * 360 * 290 |
Product Image

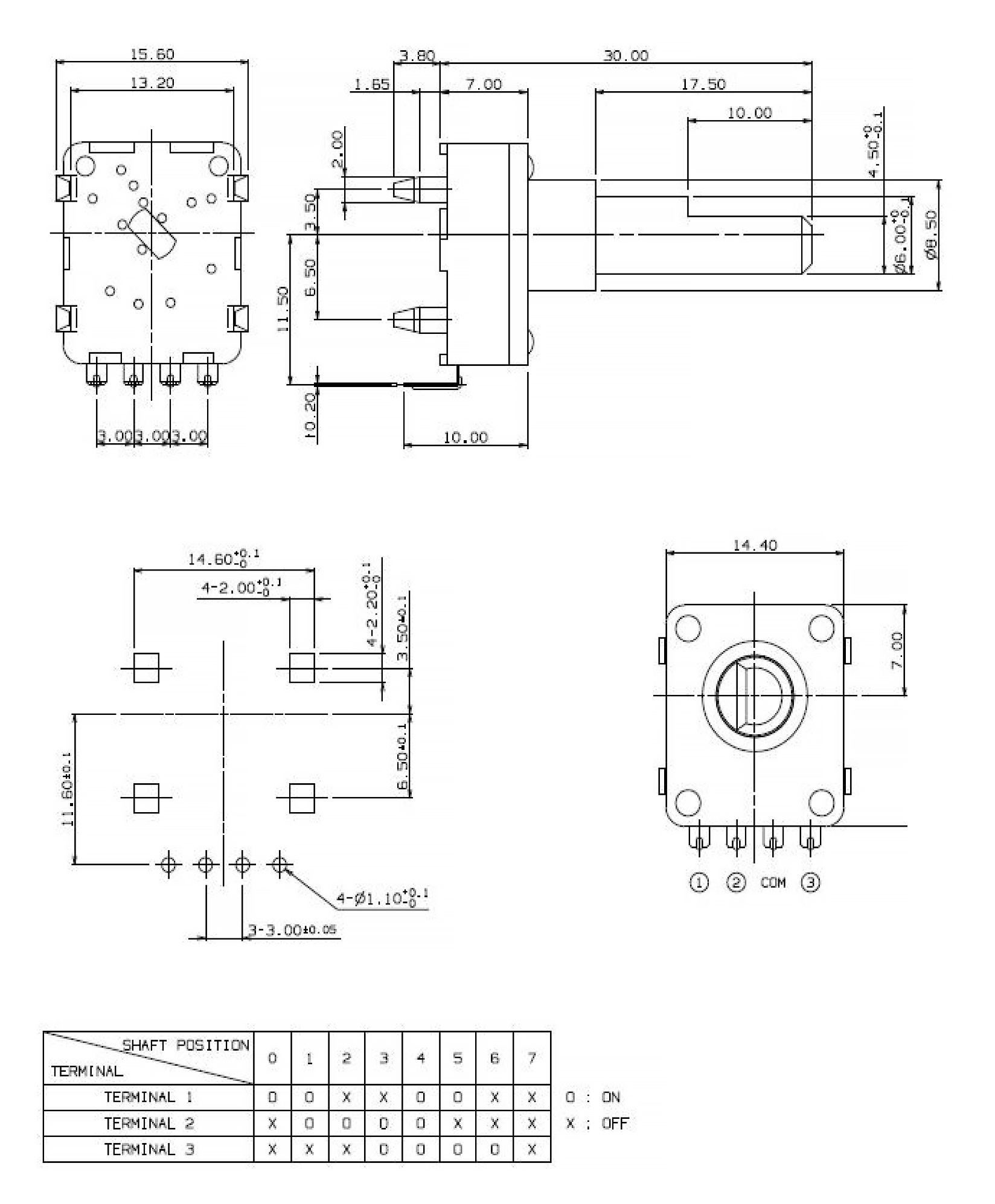

Product floor plan
