Refine Search > DETECTOR > JDS4126
Product Info
| Part Number |
JDS4126
|
| Type |
Snap-in Type |
Product Detail
| Operating force |
100g max. |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Actuator Color |
White |
| Operating life |
100000 |
| Water Proof |
|
| Travel |
Full |
4.5±0.5mm |
|
On
|
1.0+0.5/-1mm |
| Operating temperature range |
-20 ~ 70 °C |
| Rating |
DC 5V 10mA |
| Dimensions |
26mm * 22mm |
| Length |
18mm |
| Circuit |
4C-1P |
| Electrical performance |
Insulation resistance
|
100 |
| Voltage proof |
100 |
| Contact resistance |
1 |
| Environmental performance |
Cold
|
-30 ± 2 °C 96Hr |
|
Dry
|
85 ± 2 °C 96Hr |
|
Damp
|
60 ± 2 °C 90% 96Hr |
Package Info
| Number of Packages |
50 |
| Packing Type |
Tray |
| Number of Packages (1c/t) |
600 |
| Package Measurements (mm) |
470 * 360 * 290 |

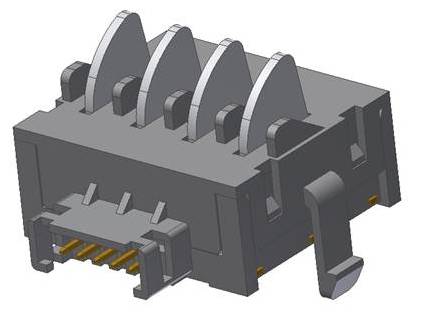

Product Image

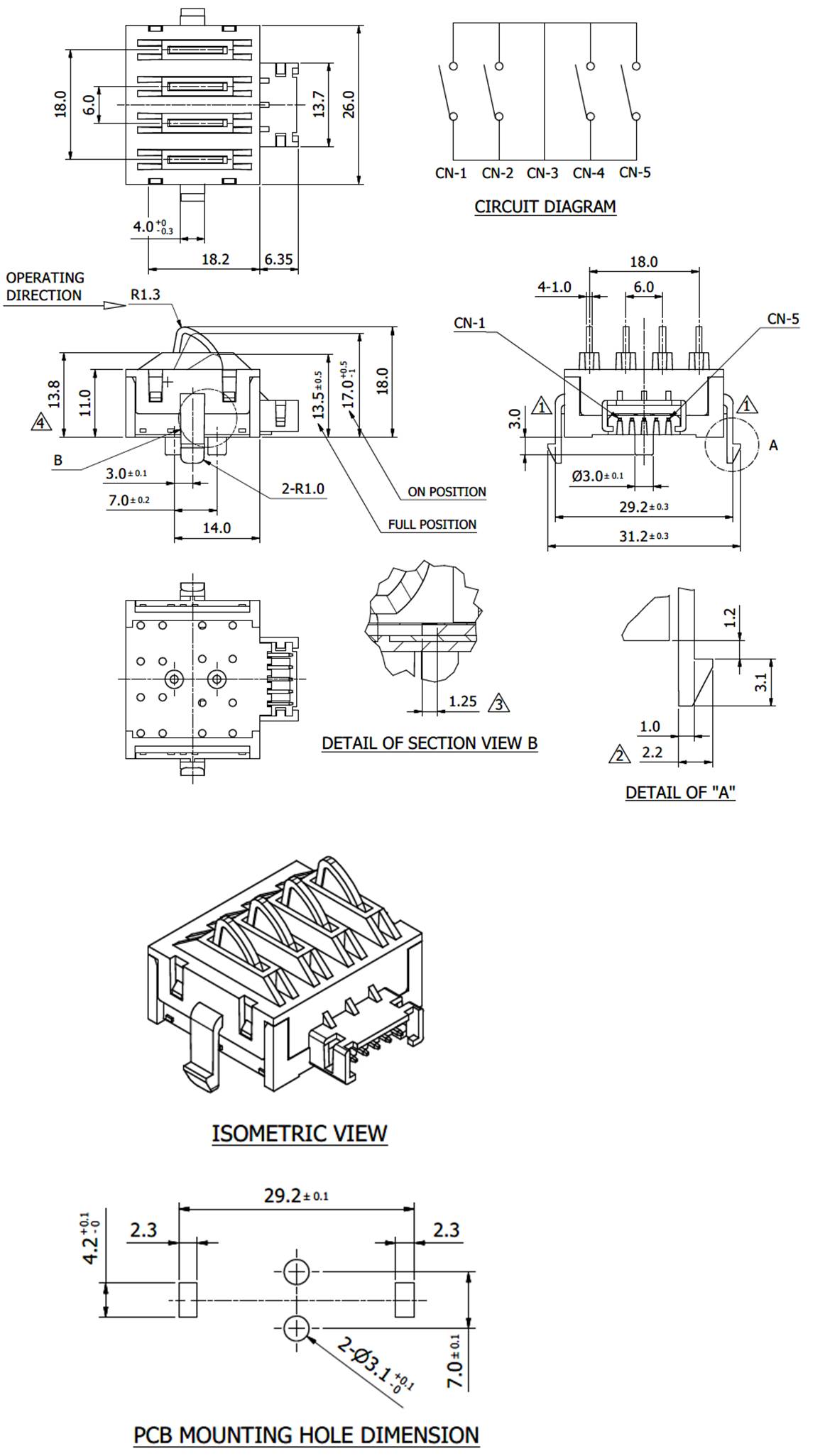

Product floor plan
